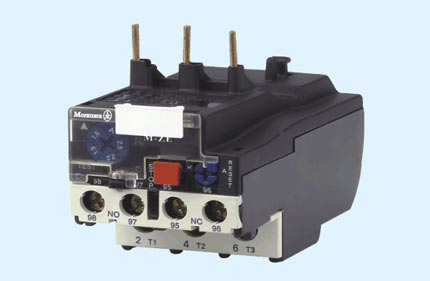

型号及外型

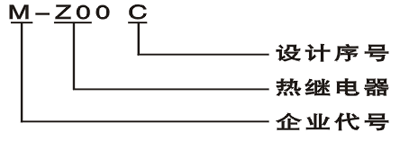

型号

整定电流范围

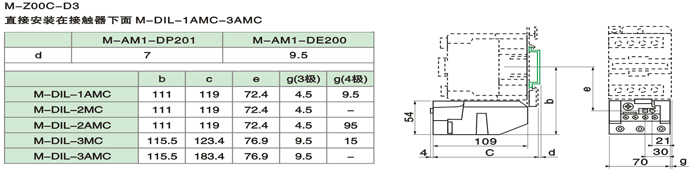

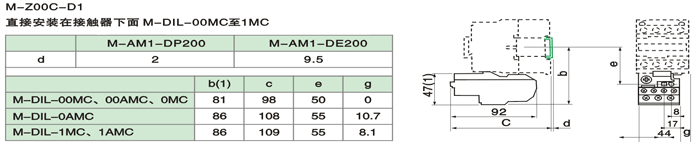

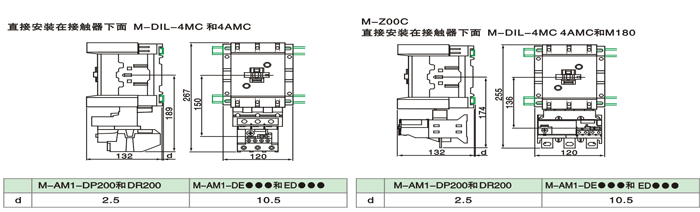

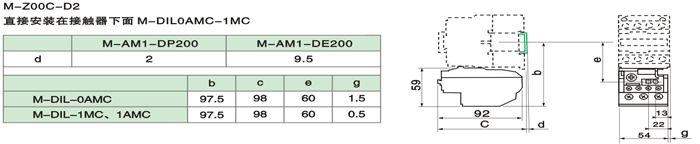

外型尺寸及安装尺寸

M-Z00C

M-Z00C-0.16
M-Z00C-0.25
M-Z00C-0.4
M-Z00C-0.63
M-Z00C-1
M-Z00C-1.6
M-Z00C-2.5
M-Z00C-4
M-Z00C-6
M-Z00C-8
M-Z00C-10
M-Z00C-13
M-Z00C-18
M-Z00C-25

0.1~0.16
0.16~0.25
0.25~0.4
0.4~0.63
0.63~1
1~1.6
1.6~2.5
2.5~4
4~6
5.5~8
7~10
9~13
12~18
17~25
